| Brand Name : | YXFiber |
| Model Number : | YXF-GE-S31L-40D |
| Certification : | CE RoHS FCC |
| Price : | $3.8~$4.5/PCS |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000pcs per month |
| Delivery Time : | 1~3working days after payment |

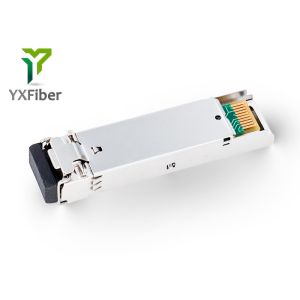

1000base 1310nm FP SM LC 40Km SFP Features:
1. Small Form Pluggable (SFP) package.
2. DDM interface compliant with SFF-8472.
3. 1310nm DFB Laser and PIN receiver.
4. distance: 40Km
5. Power consumption less than 1.0W.
6. Hot-pluggable capability.
Application:
1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps 40km transmission distance.
2. The low jitter and high sensitivity are extinguished features with 1310nm FP laser and PIN/TIA receiver.
3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions.The devices are Class I laser safety compliant.
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | TSTG | -40 | +85 | ºC |
| Ambient Operating Temperature | TA | 0 | 70 | ºC |
| Optical Rise/Fall Time | Tr /Tf | - | 0.26 | ns |
| Eye Diagram | IEEE 802.3z and ANSI Fibre Channel Compliant | |||
| Power Supply Current | Icc | - | 200 | mA |
| Extinction Ratio | ER | 9 | 13 | dB |
| Sensitivity | S | - | -25 | dBm |
| Warning | assert>-34dBm,de-assert<-26dBm | |||



|
